Madrid
$79.99

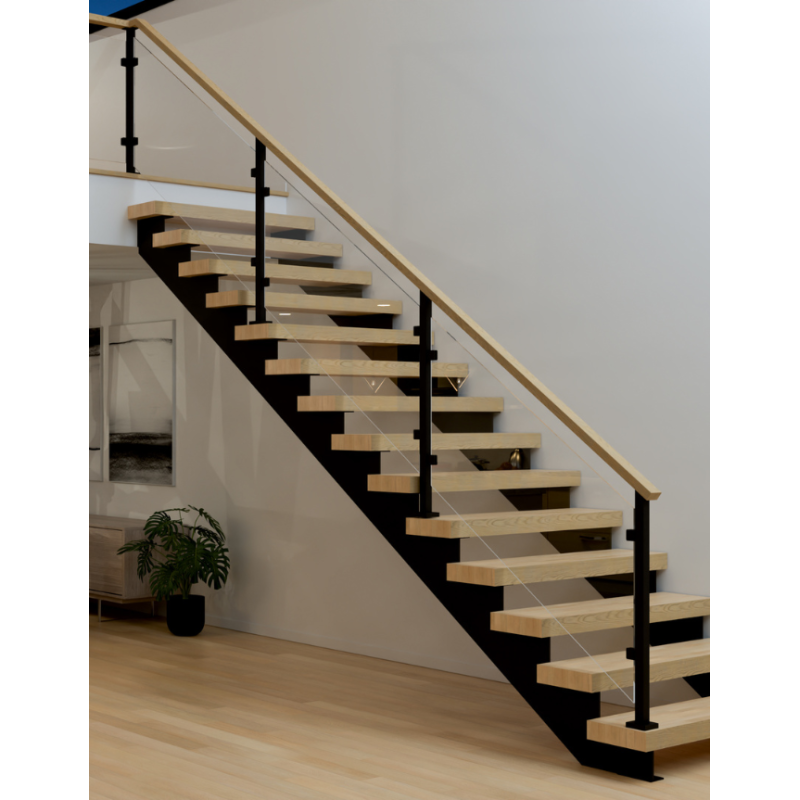

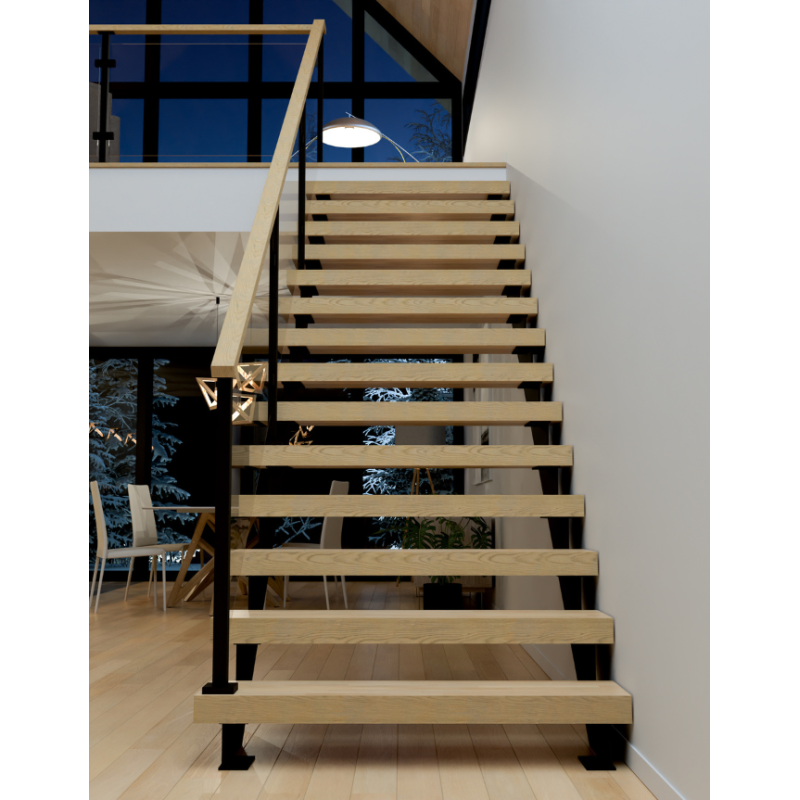

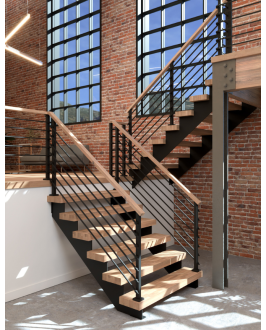

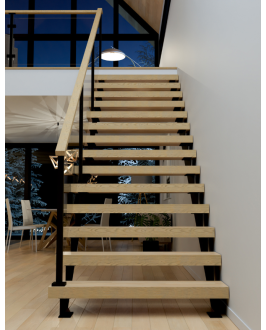

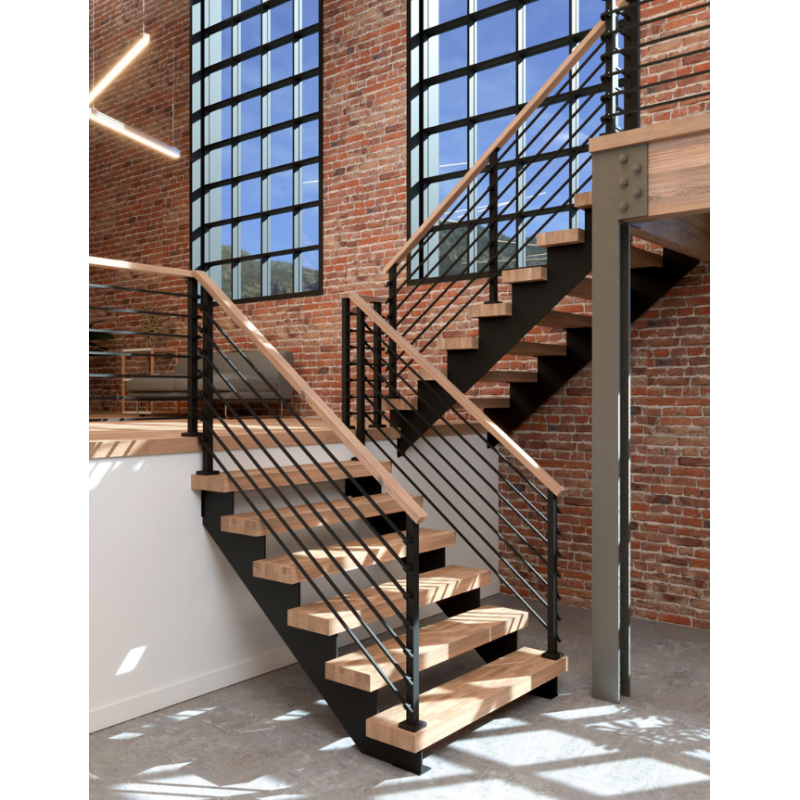

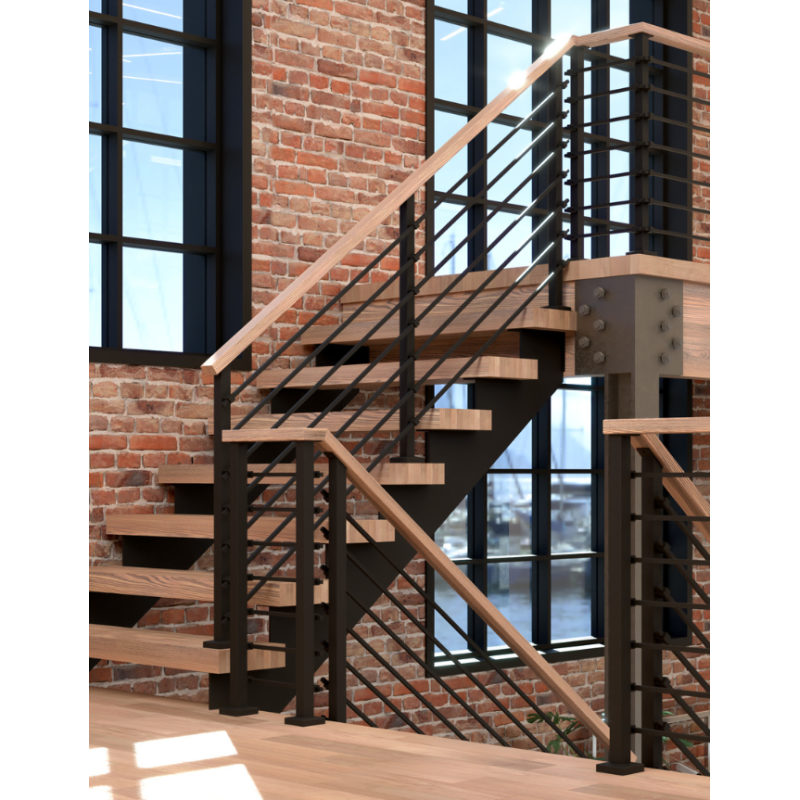

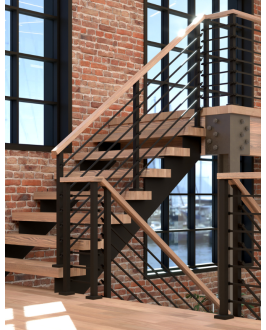

STEEL STRINGER
DUAL STAIR STRINGER
Sleek, durable, and refined. Our dual stringer combines premium finishes and modern craftsmanship to transform any staircase into a stunning architectural centerpiece.
STEEL STRINGER
DUAL STAIR STRINGER
COLORS & FINISHES
Over the years, we have developed an original line of stylish colors and finishes of outstanding quality and durability. Our Madrid steel stringer is available in a wide variety of colors.
Pick the finish that best suits your style from the selection below.
METALLIC
CM
Metallic Carbon
METALLIC
MR
Metallic Chestnut
MATTE
ACV
Pewter
MATTE
GU
Urban Grey
MATTE
CU
Urban Carbon
MATTE
MU
Urban Chestnut
MATTE
NU
Urban Black
MATTE
MEASUREMENTS
| MADRID STRINGER | ||
|---|---|---|
| Estimated weight per steps | 40 lbs | |
| Thickness of treads | 1 5/8" and more | |
| Treads width | 54" maximum | |
| CONFIGURATIONS | ||
|---|---|---|
| Landing* | 3 Winders | 2 Winders |
| N/A | N/A | N/A |
*A bolted connection may be required
| NUMBER OF TREADS PER STRINGER | ||
|---|---|---|
Depth of run < 9" |
Depth of run 9" & 10" |
Depth of run 10" & 11" |
Treads
15* |
Treads
14* |
Treads
13* |
* Wall fixation required depending on the number of treads when the stringer is not attached to the wall :
- 8 to 12 treads : 1 wall fixation
- 13 to 15 treads : 2 walls fixations
Kansas stringer
- Painted steel stringer (High-temperature baked powder coating).
- Fasteners included.
- Mechanical connection to landing and corner steps.
- A reinforcement is necessary at all times. Please refer to reinforcements suggested by Prestige Metal : Watch video.
- In conformity with the National Building Code.
General questions
Can I order balusters directly from Prestige Metal?
All of our products are available at specialty shops. You can find the list of all our distributors in the section Where to buy.
Where can I find a stair and accessories specialist in my area?
Visit the Find a distributor section or contact Prestige Metal customer service at 1 800 881-8811.
Didn’t find your answer?
Prestige Metal customer service will be happy to help you.
Phone: 418 872-2599
Toll-free: 1 800 881-8811
Fax: 418 872-2563
Toll-free: 1 888 334-3002
E-mail: [email protected]
Toll-free: 1 800 881-8811
Fax: 418 872-2563
Toll-free: 1 888 334-3002
E-mail: [email protected]

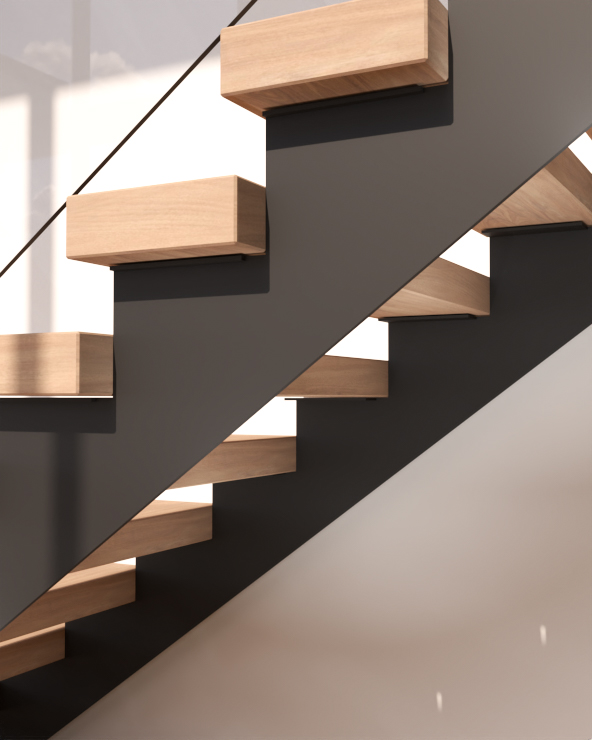

The Paris mono steel stair stringer: combine simplicity and stability!
Building a staircase requires components that are strong, durable, but also give your staircase its unique style. The Paris mono central steel staircase stringer is a real chameleon that not only provides the necessary support to your steps and landings, but can also blend into any architectural style. The Paris central stair stringer is available in a variety of colors and finishes and is made entirely in Canada.
This stair stringer can be used for most types of staircases: straight, quarter-turn or half-turn and is suitable for all styles. Add staircase components such as forged steel balusters, a steel cable railing system, or steel newel posts to your stringer to create a unique and striking look.
As a manufacturer of steel stringers for over 20 years, Prestige Metal gives you the opportunity to purchase your mono stair stringer online. You can also purchase them from one of our retailers and distributors located throughout Canada and the United States. Rest assured that you can count on the collaboration of our distributors and retailers for the design and installation of your steel stair stringers.
Data sheet
- Reference
- LPA - PARIS
- Brand
- Prestige Metal
- Colors & finishes
- Metallic Carbon
Metallic Chestnut
Pweter
Urban Black
Urban Carbon
Urban Chestnut
Urban Grey
Urban White - Collection
- Contemporary
